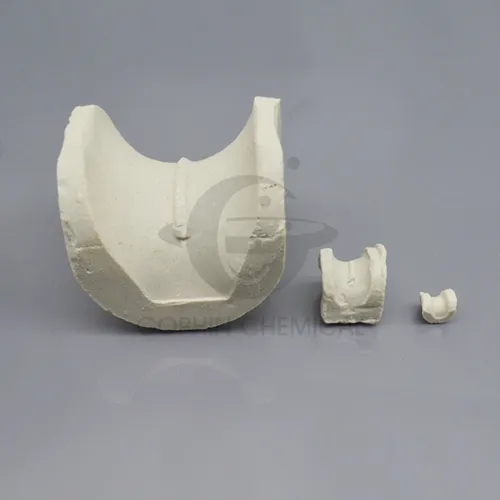

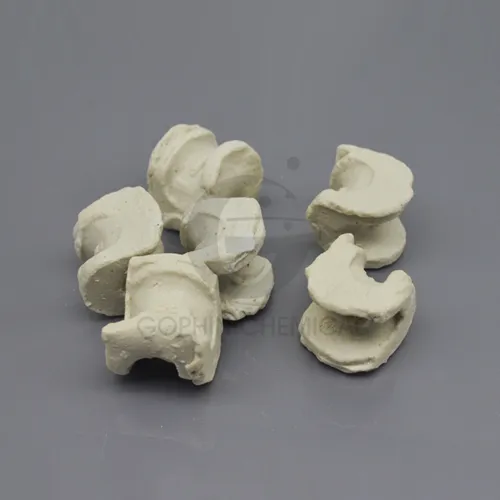

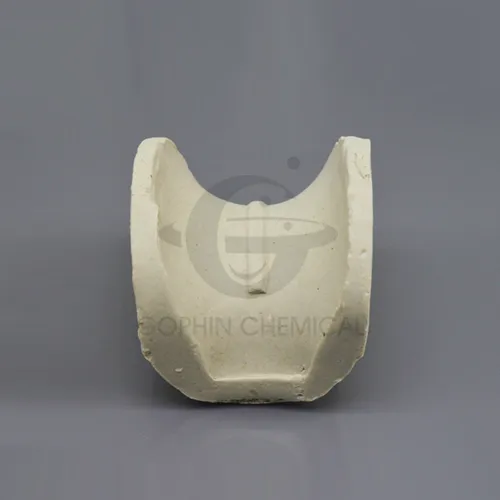

| Ceramic Berl Saddle | |||||||||||||
| Features | Resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. | ||||||||||||
| Typical Application | Drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, RTO program…etc. | ||||||||||||
| Composition | |||||||||||||
| Al2O3 | SiO2 | Fe2O3 | CaO | MgO | K2O+Na2O | Other | |||||||
| 17-23% | >70% | <1.0% | <1.5% | <0.5% | <3.5% | <1% | |||||||
| Technical Properties | |||||||||||||
| Water absorption (%) | <0.5 | Moh’s hardness | >6.5 | ||||||||||
| Apparent porosity (%) | <1 | Acid resistance (%) | >99.6 | ||||||||||
| Specific gravity (g/cm3) | 2.3-2.40 | Alkali resistance (%) | >85 | ||||||||||
| Operation temp.(max) | 1200℃ | Soften Point | 1400℃ | ||||||||||
| Dimension | Surface Area | Free Volume | No. per m3 | Bulk Density | |||||||||
| mm | inch | m2/m3 | % | pcs | kg/m3 | ||||||||
| 10 | 3/8” | 250 | 50 | 105000 | 950 | ||||||||
| 16 | 3/5” | 225 | 58 | 83950 | 725 | ||||||||
| 25 | 1” | 206 | 61 | 73250 | 640 | ||||||||
| 35 | 1.5” | 110 | 72 | 12775 | 620 | ||||||||
| 50 | 2” | 95 | 72 | 7900 | 650 | ||||||||
| Packing | |||||||||||||
| Container | 20GP | 40GP | 40HQ | ||||||||||
| Plastic bag / carton | 20m3 | 40m3 | 40m3 | ||||||||||
| Wooden case | 20m3 | 40m3 | 40m3 | ||||||||||
| Supersack | 20-22m3 | 40-42m3 | 40-44m3 | ||||||||||
